Towing · Aluminum Hitch
XAH — Adjustable Aluminum Hitch
Part No. XAH · Precision. Strength. Versatility.

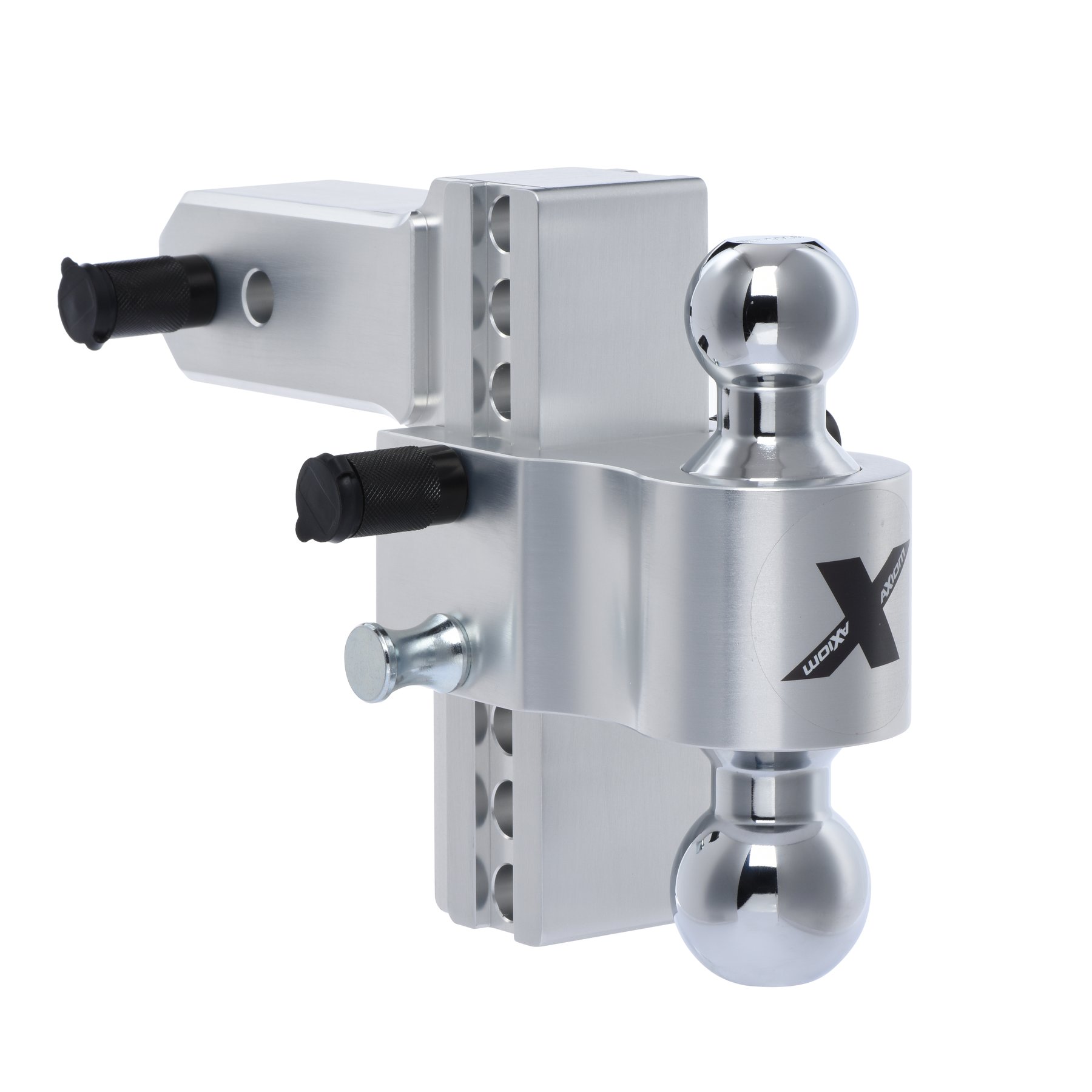

The Axiom XAH is a lightweight, corrosion-resistant hitch system machined from aircraft-grade aluminum and engineered for dependable towing. A dual-ball mount carries both a 2″ and a 2‑5/16″ ball and fits both 2″ and 2.5″ receivers, so one hitch covers a wide range of trailers, trucks, SUVs, boats, and RVs.
Key Features
- Dual-ball mount — 2″ and 2‑5/16″ balls both included
- Aircraft-grade aluminum body — rustproof and corrosion-resistant
- Three drop sizes — 6″, 8″, 10″
- Standard chrome ball finish; stainless steel available as an upgrade

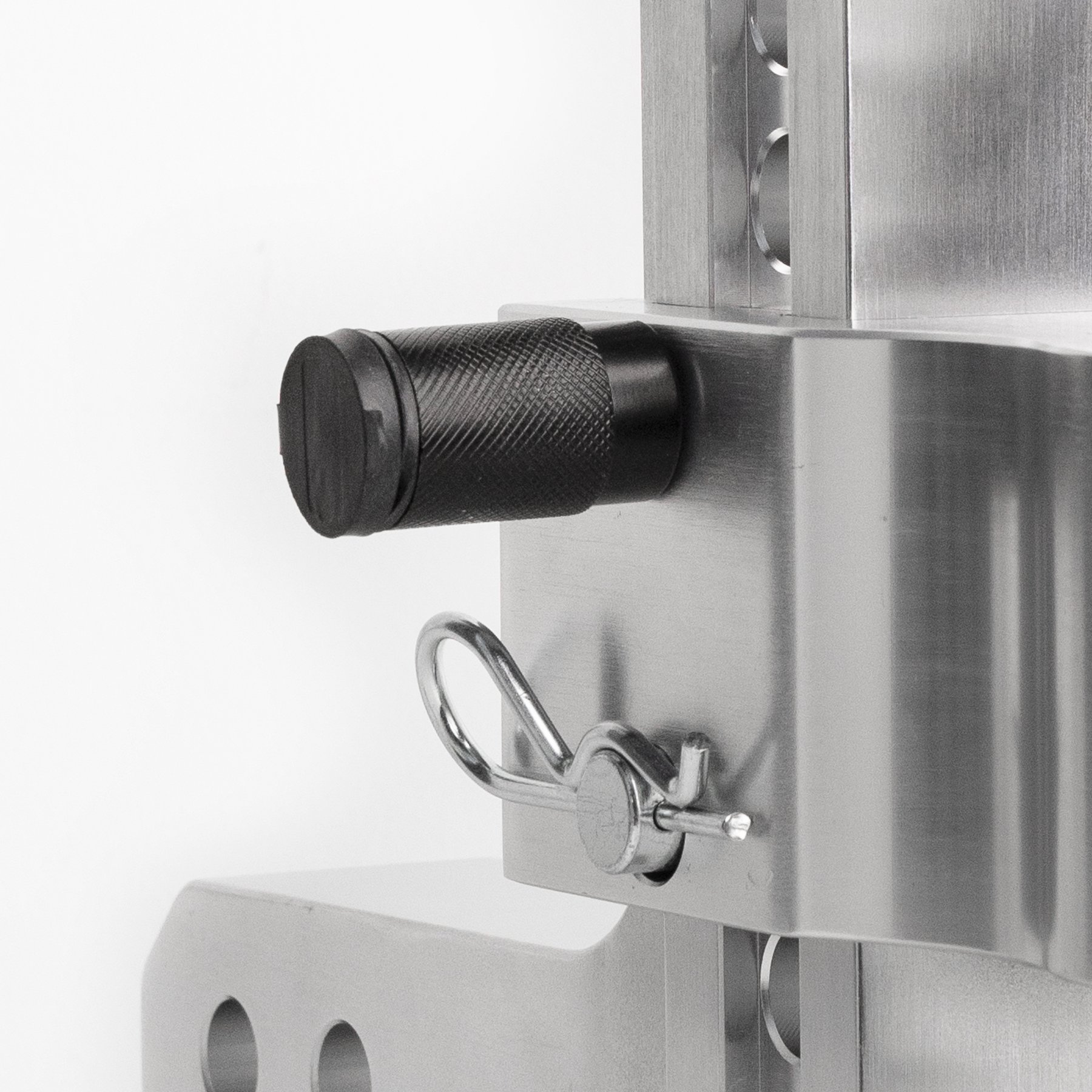

- Two keyed-alike locking receiver pins included
- Meets SAE J684 testing standards
Towing Capacity
| Receiver | Hitch Ball | Max Trailer (GTW) | Max Tongue |
|---|---|---|---|
| 2″ | 2″ | 8,000 lbs | 1,500 lbs |
| 2″ | 2‑5/16″ | 12,500 lbs | 1,500 lbs |
| 2.5″ | 2″ | 8,000 lbs | 2,200 lbs |
| 2.5″ | 2‑5/16″ | 18,500 lbs | 2,200 lbs |
Configure Your XAH
| Drop | 6″, 8″, or 10″ |
| Receiver | 2″ or 2.5″ |
| Ball finish | Chrome (standard) or stainless steel (upgrade) |
Every XAH includes both a 2″ and 2‑5/16″ ball and two keyed-alike locking pins.
